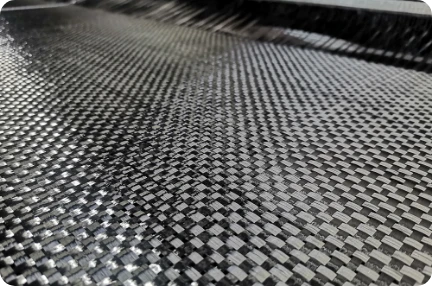

Carbon fiber prepreg is a core semi-finished material for manufacturing high-performance composite parts, widely applied in aerospace, new energy, automotive, and industrial equipment fields. The quality of carbon fiber prepreg directly determines the structural stability, mechanical performance and service life of final composite products. To ensure consistent processing effects and qualified finished product quality, standardized and systematic quality inspection must be carried out before formal use of carbon fiber prepreg. This article elaborates on the mainstream and practical pre-use inspection methods for carbon fiber prepreg, covering visual appearance inspection, physical and chemical index testing, internal defect detection, and process performance verification.
1. Visual Appearance Inspection: Basic Surface Quality Verification
Visual inspection is the first and most fundamental step of carbon fiber prepreg pre-use inspection, aiming to screen obvious surface defects that affect processing and performance. This inspection item does not require complex precision equipment and can quickly complete batch preliminary screening to eliminate unqualified raw materials in advance.
During inspection, operators need to check the flatness and uniformity of the prepreg surface. Qualified carbon fiber prepreg features flat overall texture, uniform thickness distribution, and no obvious local thickness deviation. Meanwhile, it is necessary to confirm the impregnation state of resin: the resin should fully cover carbon fiber yarns with uniform distribution, without dry yarn areas caused by insufficient resin and resin-rich zones formed by excessive resin accumulation.
In addition, surface defect screening is essential. Standard qualified prepreg has no foreign matter adhesion, no permanent folds, cracks or wrinkles that damage fiber structures, and no fiber floating and yarn breaking problems. For woven carbon fiber prepreg, the cumulative area of yarn hair groups per square meter shall comply with conventional industry standards, and no fiber deformation or texture disorder that affects lamination processing is allowed. Appearance inspection can effectively avoid processing risks caused by surface defects and lay a foundation for subsequent precision processing.
2. Physical and Chemical Index Testing: Quantitative Performance Calibration
Appearance inspection can only judge surface quality, while accurate physical and chemical index testing is the core basis to confirm whether carbon fiber prepreg meets production and design standards. Conventional pre-use detection indicators include resin content, volatile matter content, and gel time, which are key parameters affecting curing quality and product stability.
Resin content testing adopts mainstream solvent extraction method and thermogravimetric analysis (TGA) to conduct quantitative detection. Excessively high or low resin content will affect the mechanical strength and bonding performance of composite materials. Stable resin content ensures consistent curing reaction degree of prepreg in the molding process and avoids product performance deviation caused by uneven resin distribution.
Volatile matter content is a key index affecting molding yield. Residual volatile organic compounds (VOC) in prepreg are prone to form bubbles and pores during high-temperature curing, resulting in internal defects of finished products. The industry usually uses thermogravimetric instruments to detect volatile matter content by constant temperature drying and mass loss calculation. Conventional qualified standard requires the volatile matter content of carbon fiber prepreg to be lower than 1.5%. For high-precision application scenarios, gas chromatography (GC) can be used to analyze volatile component composition and trace potential process abnormalities.
Gel time testing is used to verify the curing reaction characteristics of prepreg. It judges whether the prepreg can adapt to the set molding temperature and process cycle by detecting the time required for the resin to change from viscous flow state to gel state. Matching gel time can effectively prevent premature curing or insufficient curing during lamination and molding, ensuring processing operability and finished product consistency.
3. Internal Defect Non-Destructive Testing: Hidden Quality Screening
Some internal hidden defects of carbon fiber prepreg cannot be identified by visual inspection and conventional physical and chemical testing, such as internal tiny pores, fiber misalignment, local delamination and hidden cracks. These subtle defects will expand in the molding and service process, reducing product durability and structural safety. Therefore, non-destructive testing is a necessary link in pre-use quality inspection of high-grade carbon fiber prepreg.
Common non-destructive testing methods include ultrasonic testing, X-ray CT scanning and infrared thermal imaging technology. Ultrasonic testing can accurately detect tiny pores, delamination gaps and structural inhomogeneity inside the prepreg, providing intuitive data support for judging internal compactness. X-ray CT scanning presents the internal three-dimensional structure of the prepreg, realizing precise positioning and quantitative analysis of micro defects.
Infrared thermal imaging detection efficiently identifies uneven resin impregnation and hidden defects by capturing the temperature difference changes on the prepreg surface during heating. These non-destructive testing technologies will not damage the original structure of the prepreg, which is suitable for sampling inspection of batch materials and full inspection of high-precision customized materials, ensuring no hidden quality risks before processing.
4. Process Performance Inspection: Adaptability Verification for Molding
Qualified appearance and performance indicators do not mean the prepreg is completely suitable for actual production. It is also necessary to inspect the process performance of carbon fiber prepreg before use, mainly including tackiness and flexibility, to verify its adaptability to lamination and molding processes.
Tackiness is a key process index of prepreg, which determines the bonding effect between prepreg layers and between prepreg and mold. Excessively strong tackiness will cause difficult lamination and easy adhesion and wrinkling; insufficient tackiness will lead to poor bonding between layers, delamination and voids after curing. At present, the compression-tension method is commonly used in the industry to quantitatively test prepreg tack, formulate effective evaluation indicators, and ensure stable lamination operation and reliable interlayer bonding effect.
Flexibility inspection is applicable to complex curved surface molding scenarios. It verifies whether the prepreg can be closely attached to the mold surface during bending and laying without fiber breakage, resin peeling and rebound warping. Prepreg with qualified flexibility can adapt to diversified molding processes and meet the production requirements of complex structural parts.
5. Sampling and Batch Inspection Standardization
To ensure the overall quality stability of batch carbon fiber prepreg, pre-use inspection adopts standardized sampling and detection mechanism. For bulk conventional prepreg materials, random sampling is carried out in different packaging and different positions of the material roll to avoid missing local abnormal quality of batch products. For small-batch high-precision prepreg used in aerospace and precision equipment, full-item inspection or full inspection is adopted to strictly control quality.
All inspection data shall be recorded and archived uniformly, including inspection time, detection indicators, equipment parameters and test results. Complete quality records can realize material quality traceability, provide data support for process optimization and quality problem analysis, and ensure the standardization and rigor of the whole inspection process.
Conclusion
The pre-use quality inspection of carbon fiber prepreg is a systematic project integrating appearance screening, physical and chemical index quantification, internal defect detection and process adaptation verification. Multi-dimensional and standardized inspection can effectively screen unqualified materials, eliminate potential quality and processing risks, and ensure that carbon fiber prepreg maintains stable performance in lamination, curing and molding processes. Scientific quality inspection procedures are crucial to improve the yield of carbon fiber composite products, stabilize product performance, and meet the quality requirements of high-end industrial manufacturing fields.
